Results 1 to 7 of 7
  1. #1
    Join Date
    Feb 2013
    Location
    Kakabeka Falls Ont. Canada
    Posts
    34

    Default Two of my smokers

    I own a bradley 4 rack digital. I modded it with the two element mod. Added a small fan on the back wall to help even temps out for sausage making. It works OK for a small smoker. I also was able to rescue a lab oven from work.



    15.5 x 18.5 x 27 in.
    4.5 cu. ft.
    65 to 210C
    Stainless-steel interior and rugged steel cabinet offer easy cleaning and durability; resist corrosion
    Insulation (2 in. thick [5.1cm]) provides efficient heat retention and precise temperature uniformities
    Top vent for optimal venting

    I have done many a smoke in both of these. Both are run by Auber PIDS

    This plug-and-play PID temperature controller is for controlling the temperature of the electric smokers, such as Smokin-it, Smokin Tex, Masterbuilt Smoker. It uses a PID algorithm to automatically adjust power to the heater to compensate disturbances from sun light and wind. It can hold the smoking temperature within one degree precision.

    This controller has two sensor probes, 6 programmable steps, and an AC output that is synchronized with program step(s). Users can use the first probe to control the temperature of smoker cabinet. The second pointed probe can be inserted into the food to moniitor internal temperature. The ending criteria of each step can be determined by either preset time, or preset internal food temperature. For cooking small sized foods or smoking the surface of the food, users can use the preset time as a reference point to finish the step. Using the internal temperature as the reference point is important for cooking large size food because it is difficult to know how much time is needed. For example: You can program the temperature to start at 120 F for 1.5 hour of smoking, rise to 132 F for 2.5 hours and finish at 190 F until the internal temperature reaches 170 F. Then, the controller can either turn on a buzzer to let you know the food is ready, or drop the temperature to a lower set point to keep the food warm until you are ready to serve it. This will save you time waiting by the smoker to change the settings manually when each step is finished. The synchronized AC output can be used to turn on and off the smoker generator with the program step(s). For example, you can program the smoker to dry the sausage at 140F until the internal temperature reaches 100F (step 1), turn on a smoker generator for 2 hours at 150F (step 2), then, turn off the generator to continue the next step. Up to two program steps can by synchronized with the AC output.

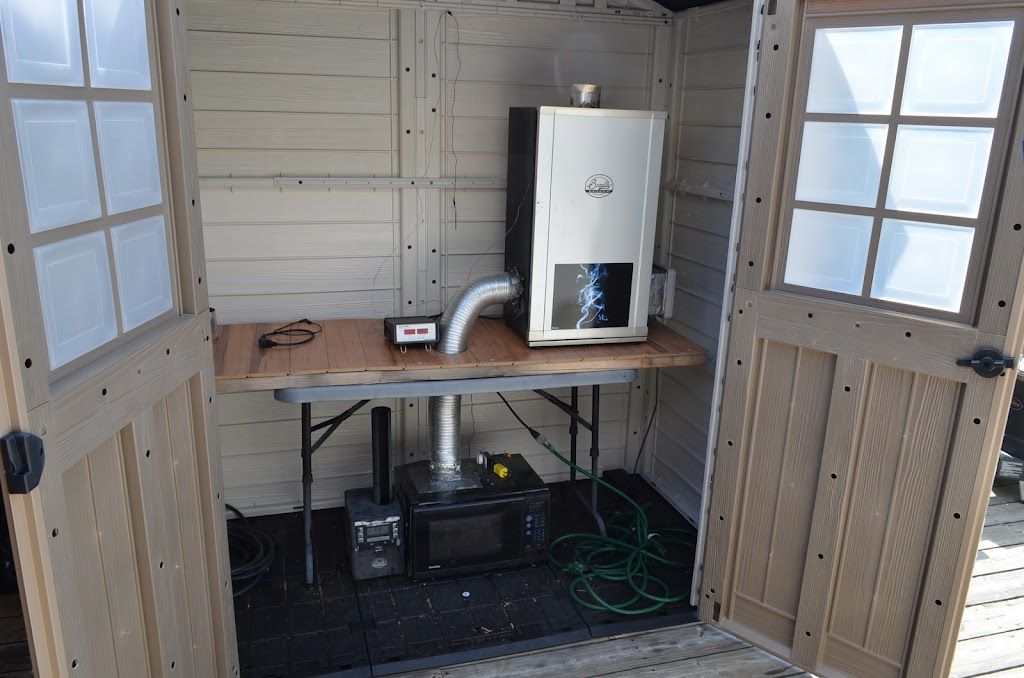

    In this photo you will see my cold smoke adapter. Its a old micro wave with the bradley smoke generator attached.


    Here is a pic of them both.


    And this is why the big one is called Miss Piggy

    Hillbilly Drum Smoker
    Bradley Digital 4 Rack
    THE BIG EASY INFRARED TURKEY FRYER
    Miss Piggy

  2. #2
    Join Date
    Sep 2008
    Location
    Northern Illinois
    Posts
    1,052

    Default

    Nice set up!
    Bill

  3. #3
    Join Date
    Jan 2008
    Location
    Tulsa
    Posts
    4,976

  4. #4
    Join Date
    Oct 2010
    Location
    Magnolia/Tomball Texas
    Posts
    1,571

    Default

    Looks like way more than I would want to attempt.
    Why in the hell should I have to "Press 1 for English?"

  5. #5
    Join Date
    Jul 2009
    Location
    Texas Hill country
    Posts
    3,030

    Default

    Where's the fire box?
    Be kind to me, it's not my fault I'm a "PORK-A-HOLIC"!!
    *
    *
    MY Blog:Http://acountryboyeats.blogspot.com
    Chargriller Smokin' Pro/SFB
    Webber 22.5"
    Memorial UDS Big Jim

  6. #6
    Join Date
    Feb 2013
    Location
    Kakabeka Falls Ont. Canada
    Posts
    34

    Default

    Quote Originally Posted by BluDawg View Post
    Where's the fire box?
    Right here
    Hillbilly Drum Smoker
    Bradley Digital 4 Rack
    THE BIG EASY INFRARED TURKEY FRYER
    Miss Piggy

  7. #7
    Join Date
    Jan 2008
    Location
    Carthage, MO
    Posts
    10,055

    Default

    Awesome setup! Looks like you're into the technical side of controlling temps and a gadget guy too. Thanks for posting your setup .. love it.

    This message supported by duct tape and bubble gum.
    Plank Owner ..................
    I didn't fight my way to the top of the food chain to be a vegetarian!
